ANNKE NCPT500 3K 5MP for Home Surveillance PoE IP Security Camera Two-way Audio Speaker
Key features
|
Image Sensor
|
1/1.8" Progressive Scan CMOS
|
|
Max resolution
|
3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
|
|
Main Stream
|
50 Hz: 20fps(3072*1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 20fps(3072*1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
|
Substream
|
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
|
Video Compression
|
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG |
|
Video Bit Rate
|
32 Kbps to 8 Mbps
|
|
Lens
|
2.8 mm@F1.0
|
|
FOV
|
Horizontal FOV 105.7°, vertical FOV 57.3°, diagonal FOV 124.9°
|
|
Supplement Light
|
Smart white Light, up to 30 m
|
|
Min. Illumination
|
24 hour color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with Light
|
|
Movement Range
|
Pan:0° to 340°, Tilt: -5° to 105°
|
|
Pan Speed
|
Configurable from 4° to 21°/s
|
|
Tilt Speed
|
Configurable from 4° to 19°/s
|
|
Audio Compression
|
G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM
|
|
Audio Bit Rate
|
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps(MP2L2)/16 to 64 Kbps (AAC-LC)
|
|
Audio Sampling Rate
|
8 kHz/16 kHz
|
|
Environment Noise Filtering
|
Yes
|
|
Image Enhancement
|
3D DNR, BLC, HLC, DWDR
|
|
Protocols
|
IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP,FTP
|
|
API
|
Open Network Video Interface Version 18.12
|
|
Audio
|
Build in microphone & speaker, support 2-way audio
|
|
Basic Event
|
Motion detection, video tampering alarm, exception
|
|
General Function
|
Mirror, password protection, watermark
|
|
Material
|
Plastic
|
|
Color
|
White & black
|
|
Operating Power
|

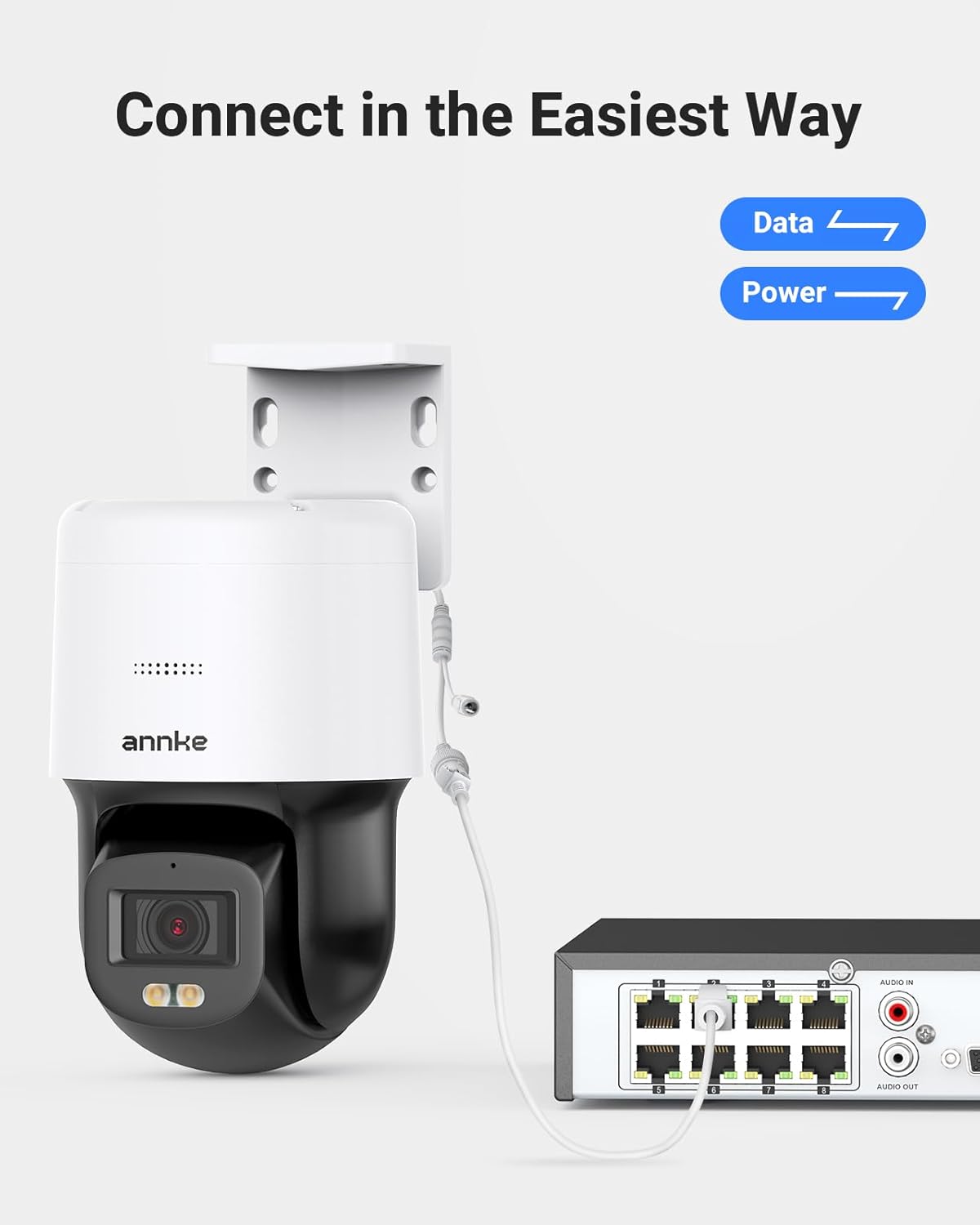

12 VDC ± 25%, 0.75 A, max. 9 W; PoE (802.3af), max. 10 W
|
|
Ethernet Interface
|
1 RJ45 10 M/100 M self-adaptive Ethernet port
|
|
Storage
|
Support MicroSD Card (up to 256 GB)
|
|
Operating Temperature
|
-22° to 122° F (-30° to 50° C)
|
|
Indoor/Outdoor
|
Indoor/Outdoor
|
|

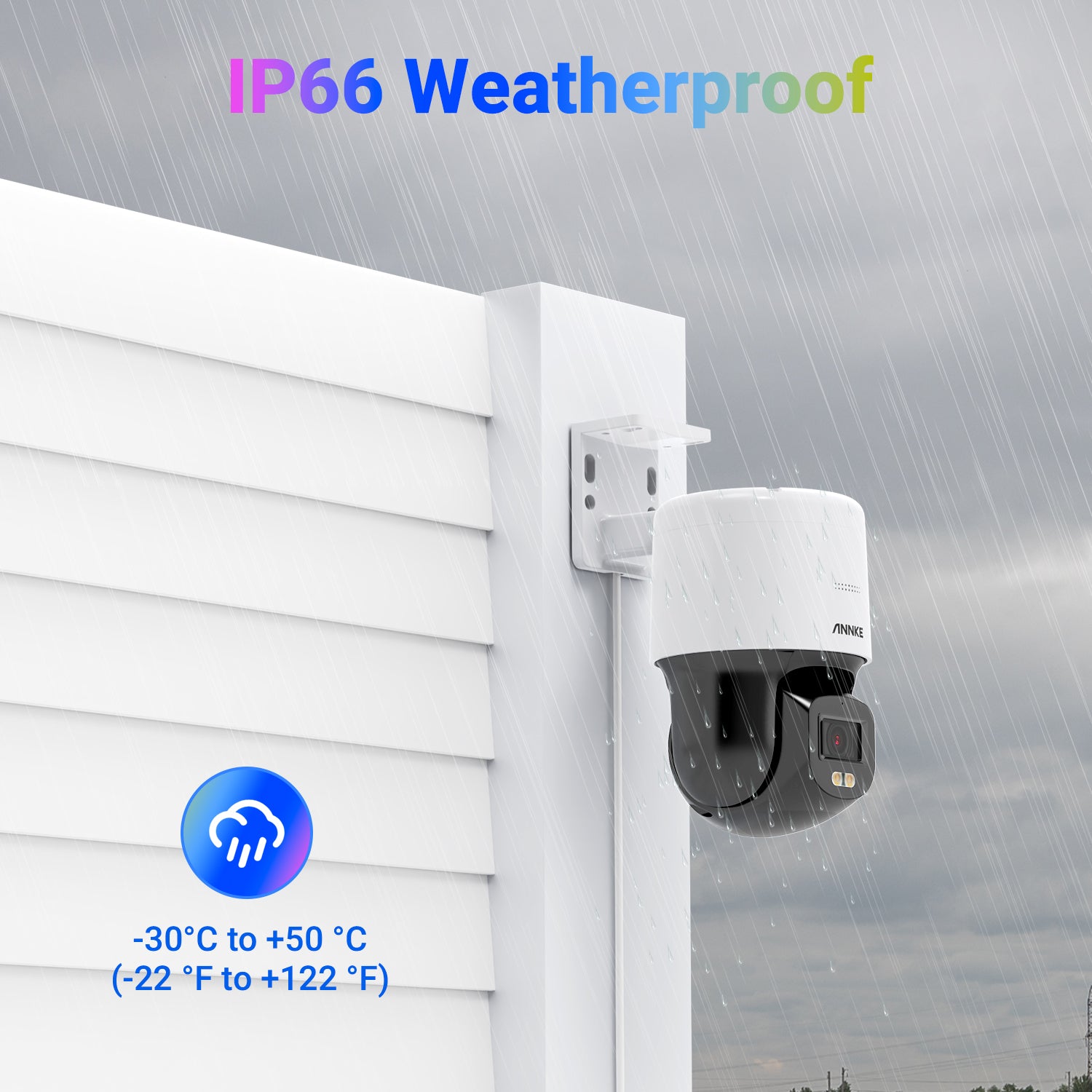

Protection Level
|
IP66
|
|

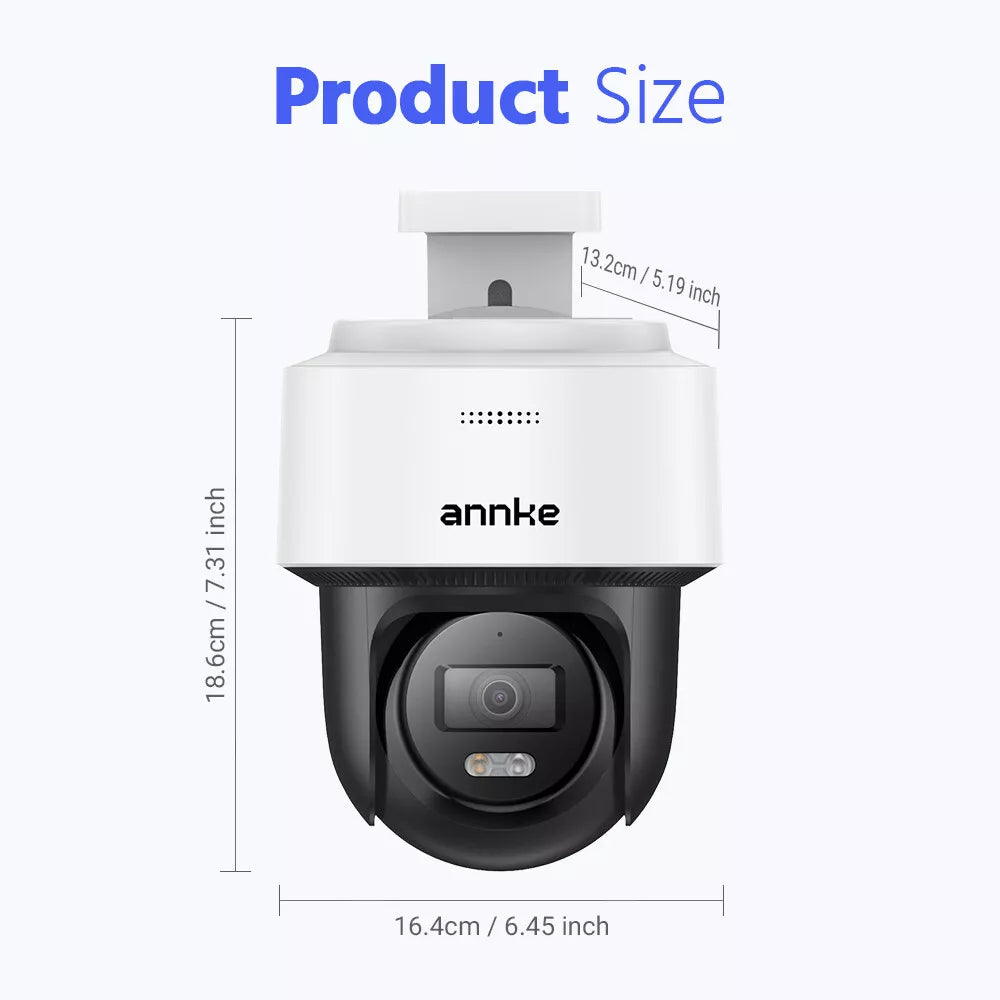

Dimension
|
162 mm × 120 mm × 234.2 mm (6.4" × 4.7" × 9.2")
|
|
Weight
|
780 g (1.7 lb.)
|

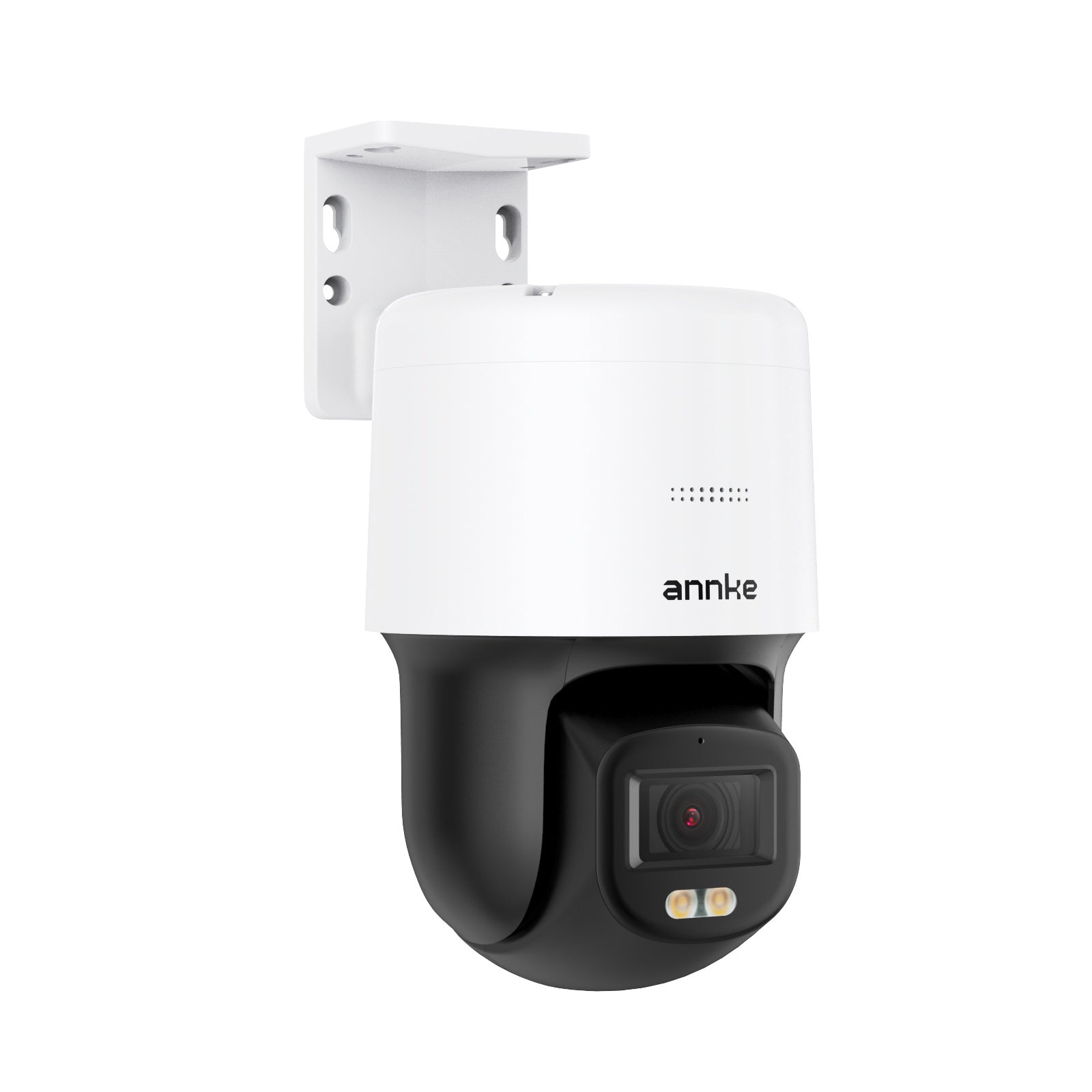

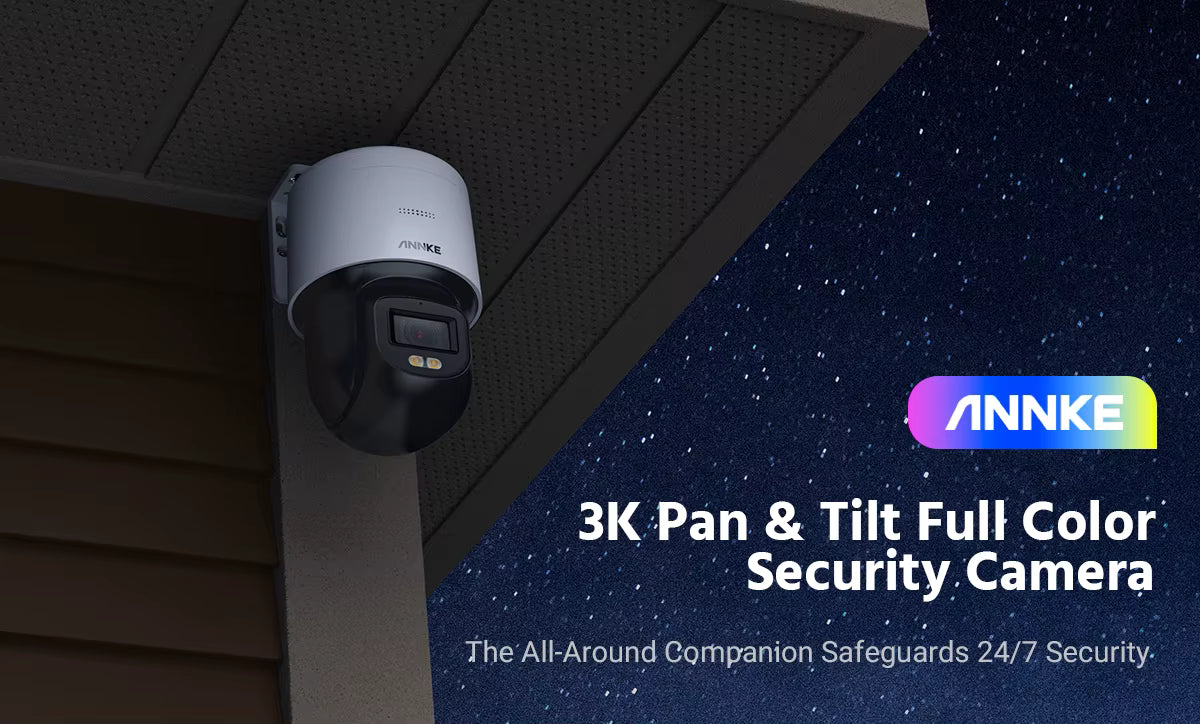

ANNKE NCPT500
Full Color & Pan Tilt,Expand Your Vision
See Every Detail & True Color, Even at Night
To achieve TRUE acme color night vision, it is necessary to utilize high-quality materials and cutting-edge technologies. The incorporation of advanced technologies such as 1/1.8 BSI sensors, f/1.0 super aperture, ISP (Image Signal Processor), and dual supplemental lights is what enables the production of true color night vision images.
3K High-Resolution with 16:9 Image Scale
This camera is equipped with a 1/8" Progressive Scan BSI CMOS sensor which enables it to capture videos in 3K resolution (3072x1728@20fps) with exceptional clarity and accuracy, showcasing even the slightest details in a realistic manner. The 16:9 image scale is superior to the traditional 4:3 ratio, making it more compatible with the commonly used display ratios.
The IP camera adopts 4 incredible image enhancement technologies – DWDR, 3D DNR, BLC & HLC – to provide the splendid 3K Super HD clarity. So, whether you view the live stream by day or by moonlight, you’ll get a new level of details and colors that wasn’t possible before.
Covers More & Sees Wider
This camera has the ability to pan horizontally up to 340° and tilt vertically up to 110°. By controlling it remotely, you can easily modify the camera's angle to capture a broader perspective of the monitored space. Ideal for overseeing extensive locations like parking lots, outdoor areas, and warehouses.
Talk Like You’ re Here
Built-in microphone & speaker allow you to listen and talk back to whoever the camera catches in real time. You can greet your friends with a "Hello!" or warn an unwelcome person to "Get away!" Support filter the environment noise, and record videos with vivid sound.
ANNKE NCPT500 3K 5MP for Home Surveillance PoE IP Security Camera Two-way Audio Speaker
