Future proof your security with Ultra HD 12MP recording and effortless PoE installation. The ANNKE 16 Channel NVR is a professional grade hub for your security system. Capable of recording up to 12MP resolution (higher than standard 4K), it captures every license plate and face with crystal clarity. With built in Power over Ethernet (PoE), you can connect and power your cameras with a single cable, making installation simple and tidy.
1.Next Gen 12MP Support: Unlike standard 4K recorders, this unit supports cameras up to 12 Megapixels, ensuring you have the highest detail possible for evidence.
2.Plug & Play PoE: Features 16 built in PoE ports. Just plug your IP cameras directly into the back of the NVR using a Cat5e/Cat6 cable for both video and power, no extra power adapters needed.
3.Advanced H.265+ Compression: innovative coding technology reduces file sizes by up to 75% without losing picture quality, allowing you to record longer on your hard drives.

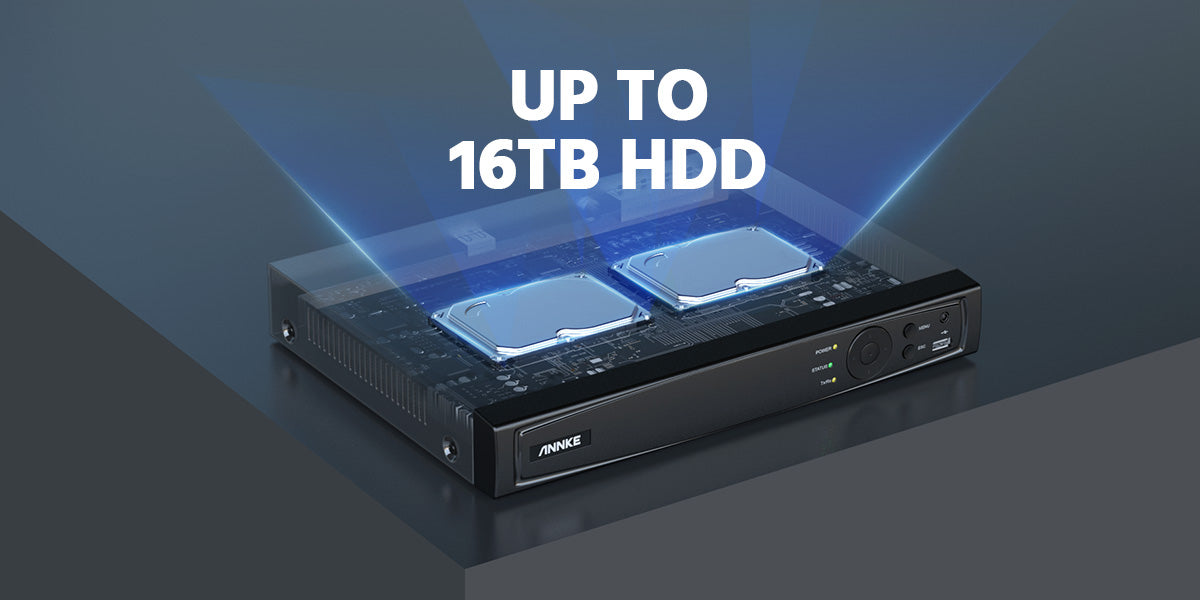

4.Massive Storage Capacity: Equipped with 2 SATA HDD slots, supporting up to 8TB per drive (Total 16TB capacity), giving you weeks of 24/7 recording space.
5.Smart Motion Alerts: Customize specific "activity zones" (like a door or driveway) to reduce false alarms from swaying trees. Receive instant push notifications to the annke Vision App on your phone.
|
NVR POE
|
| Video & Audio |
Video Compression |
H.264+/H.264/H.265/H.265+ |
IP Video Input |
16CH PoE |
| Video Output |
HDMI up to 4K, VGA up to 1080p |
Audio Input/Output |
1/1 RCA |
| Incoming/Outgoing Bandwidth |
160/80 M |
ON VIF Protocols |
Support |
| Max Recording Resolution |
Up to 12MP(4096 X 3072) |
Max Playback Resolution |
Up to 12MP(4096 X 3072) |
| Max Playback Channel |
16CH |
Max Playback Capacity |
1 ch@12 MP,3 ch@4 MP,6 ch@1080p |
| Hard Drive |
HDD |
2 SATA Interface |
HDD Capacity |
Up to 8 TB Capacity for each disk |
External Interface |
Network Interface |
RJ45 X1 (10/100/1000 M) |
PoE |
16, RJminus 45 10/100 Mbps self adaptive Ethernet interface, IEEE 802.3 af/at |
| USB |
2X USB 2.0 |
| Smart Function |
Deep learning |
16 ch Human and vehicle targets detection(Need IP camera support) |
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting
detection(Need IP camera support) |
| 4 ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP) |
| General |
Operating Power |
AC 100minus 240 V |
Power Consumption |
≤15 W (Without HDD and PoE) |
| Working Temperature |
14 °F ~ 131 °F/minus 10 °C ~+55 °C |
PoE: Max 25.5 W for Single Port |
| Dimensions (W X H X D) |
15.2” X 12.4” X 2.0”/385 X 315 X 52 mm |
Weight (Without Hard Disk) |
6.6 lbs./3 kg |
Industry Leading H.265+ Video Format
Keep the exceptional 12MP Ultra HD footage without the 12MP file sizes thanks to the ANNKE's exclusive leading H.265+ video format. It records longer videos and saves up to 75% storage space than H.264 coding, providing a smooth 12MP stream without using all the data.
Hard Drive Not Included (Unless specified): Please note this NVR usually requires a Surveillance Grade Hard Drive (like WD Purple or Seagate SkyHawk). Do not use a standard PC Desktop hard drive, as they are not built to run 24/7 and will likely fail within months.
Real Time App Pushes & Email Alerts
When the NVR detects any difference, it will push instant app notifications and email alerts to you, so that you can access the system to check the motion events and take actions to prevent possible intrusion.
Free ANNKE Vision App Access
ANNKE NVRs and DVRs support remote viewing through the ANNKE Vision app. You can watch live video, play back recordings and manage your CCTV system from your phone without paying any monthly or yearly subscription fee for the standard app features. Simply connect your recorder to the internet, enable ANNKE Vision/P2P, scan the QR code in the app and start viewing your cameras remotely.
Recommended ANNKE PoE cameras for the ANNKE N46PCK
The six ANNKE cameras below are practical pairing options for standard IP video, live view and recording with the ANNKE N46PCK, within the recorder’s published resolution, channel and bandwidth limits. This recorder provides built-in PoE camera ports for direct power and data connection. Check the number of physical PoE ports, total PoE budget and planned camera count before installation.
These combinations are recommended from HawkVision Pro’s practical installation experience and the requirements customers most often bring us. Keeping the camera and recorder within the ANNKE ecosystem generally delivers a higher level of setup harmony, easier device discovery and more predictable support than a mixed-brand ONVIF system.
HawkVision Pro First ChoiceFeatured 4K PoE camera
Our first-choice 4K camera for an excellent balance of native image detail, useful deterrence features and value. The I91DS is a popular choice with installers and customers who want dependable 4K evidence without moving to a much higher price tier.
- Native 3840 × 2160 4K/8MP video
- AI human and vehicle detection
- Smart Dual Light, siren and strobe deterrence
- Two-way audio, PoE and IP67 outdoor protection
To see the full 4K detail: use a compatible 4K television or monitor and select a supported 4K output setting on the recorder. A lower-resolution display cannot show all the detail captured by an 8MP camera.
Recommended for standard IP video, live view and recording within this recorder’s published resolution and bandwidth limits. Camera-side AI, two-way audio, siren, strobe and Smart Dual Light controls can depend on recorder model, firmware and channel settings.
View the ANNKE I91DS
ANNKE FCD8008MP panoramic image, seamless 180° dual-lens view, Smart Dual Light, human and vehicle detection, active deterrence, two-way audio and up to 512GB microSD storage.
ANNKE C1200 I91DN12MP detail, 113° horizontal view, Smart Dual Light, human and vehicle detection, built-in microphone, 120dB WDR and up to 512GB microSD storage.
ANNKE AC500 I51ES3K 5MP video, Smart Dual Light, human and vehicle detection, two-way audio, sound and light deterrence, IP67 protection and up to 512GB microSD storage.
ANNKE I51EM3K 5MP video, Smart Dual Light, human and vehicle detection, built-in microphone, H.265+, IP67 protection and local microSD recording.
ANNKE NightChroma NCPT5003K video, 340° pan and 110° tilt range, F1.0 colour night imaging, two-way audio, H.265+, IP66 protection and up to 256GB microSD storage.
Important compatibility definition: standard video recording compatibility does not automatically guarantee every advanced camera feature on every recorder. Two-way audio, camera-side AI/smart events, active deterrence, white-light controls, panoramic display and PT control may depend on the NVR firmware and channel configuration. Contact HawkVision Pro before ordering if any of these functions is essential.
Which cable gives the most reliable PoE connection?
Use genuine solid-copper Cat6 cable, correctly terminated and tested. Avoid CCA cable. A standard Ethernet channel is normally limited to 100 metres end to end; for outdoor routes use a suitable outdoor-rated cable and weatherproof the RJ45 connection.
Why are these pairings recommended?
All six cameras use standard network video, H.265/H.265+ encoding and IEEE 802.3af PoE, and their 3K, 8MP or 12MP resolutions sit within this recorder’s published camera-resolution capability. Final system design should still account for total incoming bandwidth, decoding limits, simultaneous playback requirements and PoE power budget.
