ANNKE CR1CW 3K 5MP Smart Dual Light Analogue CCTV Camera
ANNKE CR1CW 3K 5MP Smart Dual Light Analogue CCTV Camera
Explore the product design and its key installation details before choosing the right model for your security system.

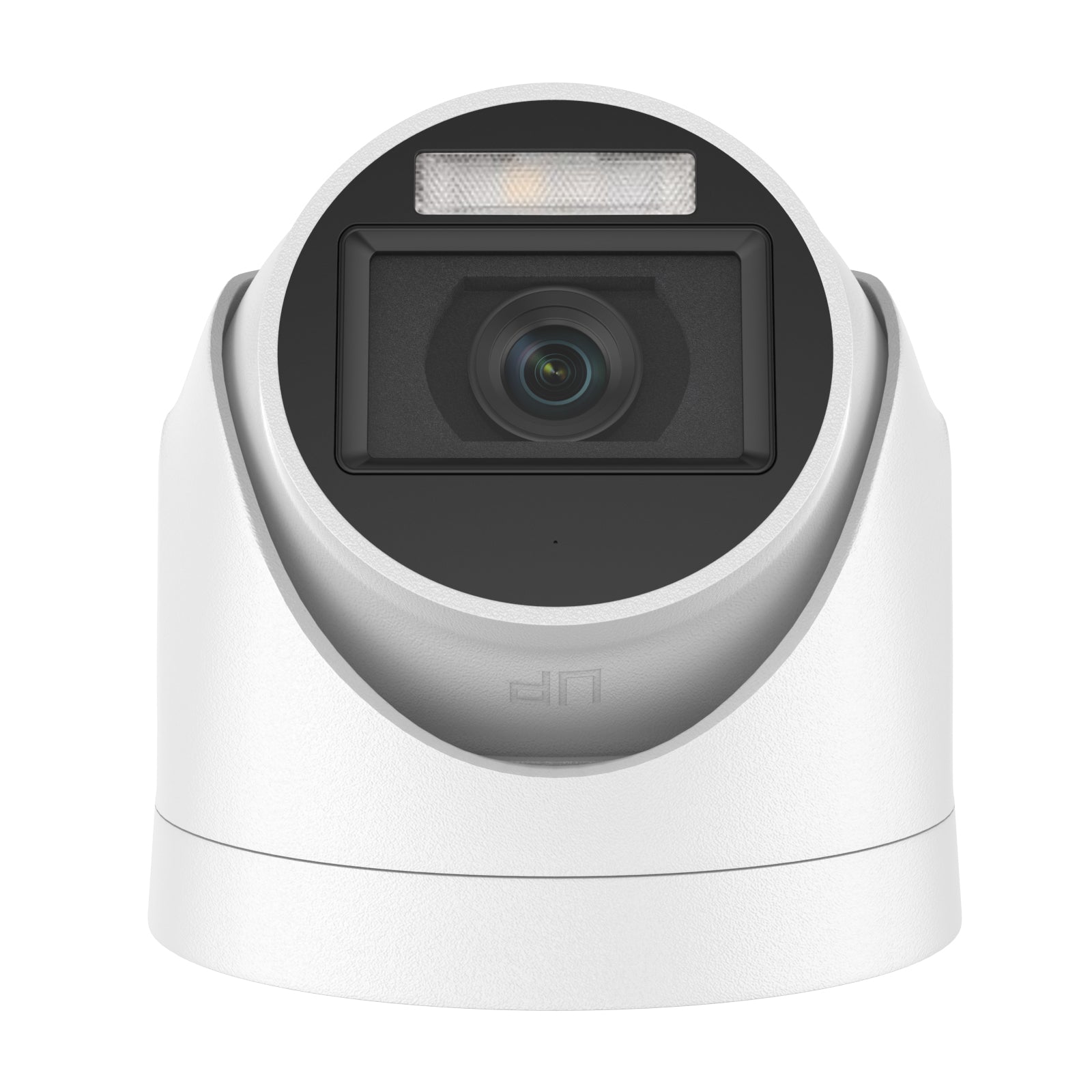

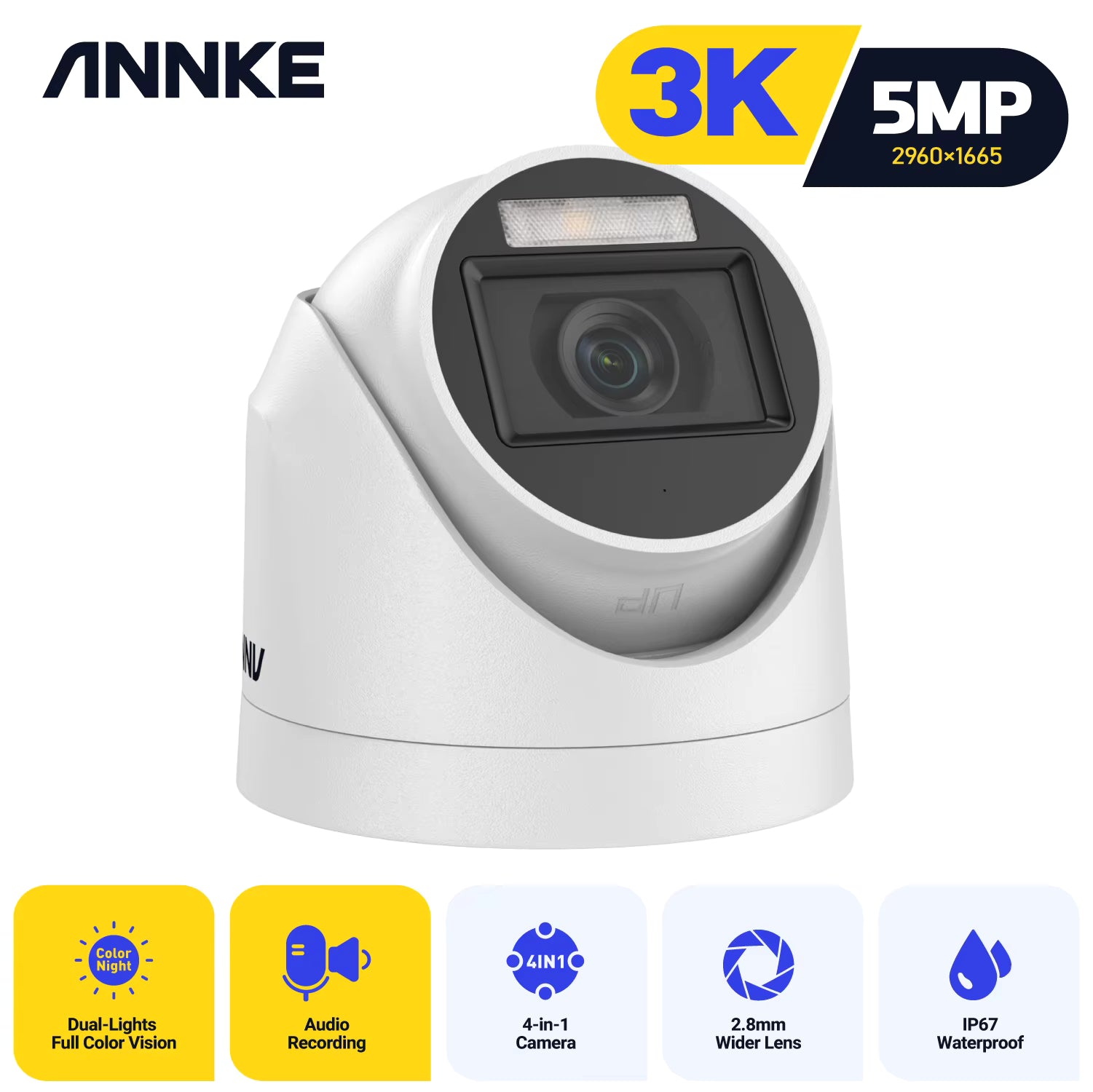

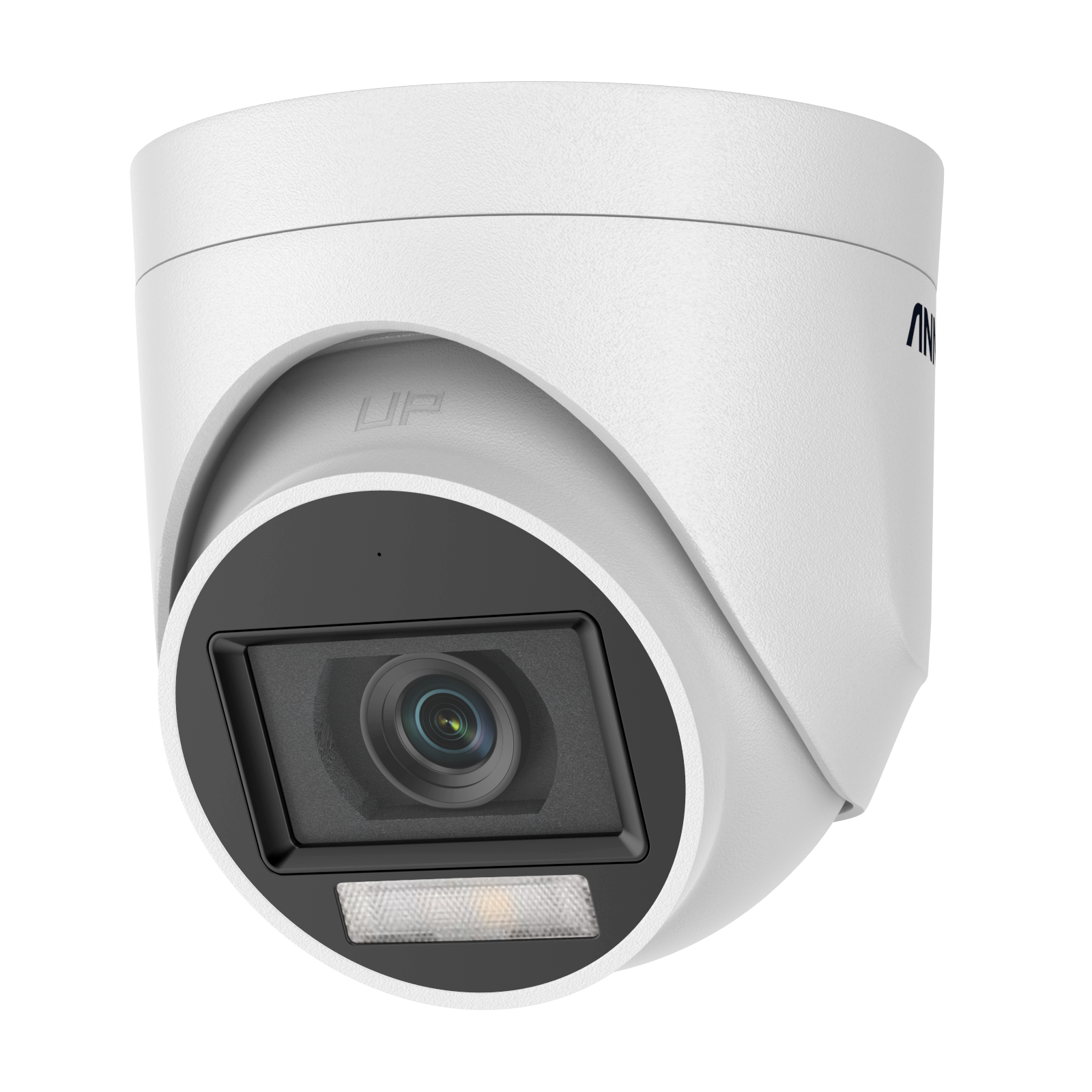

ANNKE CR1CW 3K 5MP Smart Dual Light Analogue CCTV Camera
A compact wired analogue turret camera for clear day and night security coverage. The CR1CW provides 3K (5MP) video, built in audio over coax and smart dual light night vision in an IP67 weatherproof housing.
Key features
- 3K / 5MP video: 2960 × 1665 resolution for detailed coverage.
- Smart dual light: up to 30m infrared night vision and up to 20m white light colour night vision.
- Built in microphone: audio over coax with a compatible DVR, no separate audio cable required.
- 4 inminus 1 BNC output: switchable TVI, AHD, CVI and CVBS for flexible upgrades.
- 2.8mm fixed lens: 107° horizontal field of view.
- IP67 rated: suitable for indoor or outdoor installation.
Technical specification
| Model | CR1CW |
| Resolution | 3K / 5MP, 2960 × 1665 |
| Lens | 2.8mm fixed, f/1.2 |
| Video output | TVI / AHD / CVI / CVBS, switchable |
| Night vision | IR up to 30m; white light up to 20m |
| Audio | Built in microphone; audio over coax |
| Power | 12V DC, max. 2.9W |
| Protection | IP67; minus 40°C to 60°C |
Compatibility
This is a wired BNC analogue camera and requires a compatible DVR and 12V DC power supply. Smart event triggered white light and audio recording require compatible recorder settings.
Compatible ANNKE DVR recorders for the CR1CW
The ANNKE CR1CW is a 3K 5MP, 4-in-1 BNC camera with a built-in microphone and Smart Dual Light. It offers strong integration with the ANNKE DVRs below when the camera signal format, channel resolution and recorder settings are configured correctly.
- ANNKE DR88 4K 8-Channel Hybrid DVR — a high-capability eight-channel option with ample resolution headroom. Recommended where 4K cameras may be added later.
- ANNKE DW81KN 3K Lite 8-Channel Hybrid DVR — a natural resolution match for a cost-effective eight-camera CR1CW system.
- ANNKE D941BB 4K 4-Channel Hybrid DVR — a compact four-channel option with resolution headroom for mixed-camera upgrades.
Feature support: These compatible ANNKE camera-and-recorder combinations can provide strong support for live view, recording, playback, remote access and supported audio-over-coax and Smart Dual Light functions. Exact event-triggered lighting, audio and AI behaviour depends on the selected video standard, channel configuration and recorder firmware.
