Native 4K detail. Smarter AI alerts. Active deterrence at the camera.

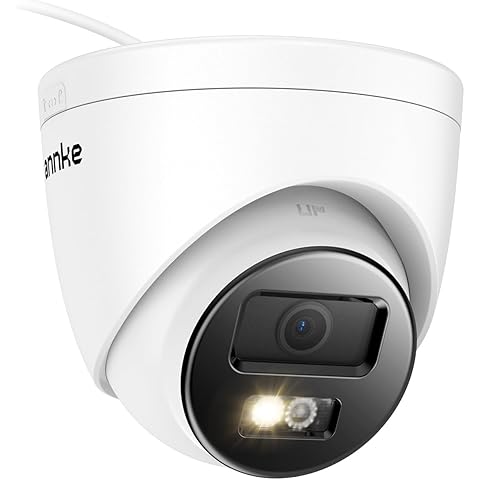

The ANNKE I91DS is an 8MP PoE turret camera for driveways, entrances, shops, offices and other locations where identification detail matters. It records at a native maximum resolution of 3840 × 2160, distinguishes people and vehicles, and can respond to a relevant event with white-light flashing and an audible warning. A built-in microphone and speaker also support two-way audio through a compatible system.
Choose a compatible PoE NVR or ask Hawk Vision Pro to check compatibility before ordering.
Tested with the ANNKE N98PBK PoE NVR
Hawk Vision Pro has tested the I91DS directly with the ANNKE N98PBK 8-Channel 12MP PoE NVR and found the pairing to provide excellent practical compatibility. This makes the combination a strong choice for an eight-camera system that needs native 4K recording, PoE installation and intelligent event handling.
For best results, keep the camera and recorder firmware current and configure resolution, bitrate, AI events, two-way audio and active deterrence for the installation. Available controls can vary with firmware and channel settings.
Why choose the ANNKE I91DS?
-
Native 4K 8MP video: maximum 3840 × 2160 resolution for detailed recorded evidence.
-
AI human and vehicle detection: classifies relevant targets to reduce alerts caused by general movement.
-
Active deterrence: configurable flashing white light and audio alarm can warn an intruder when a relevant event is detected.
-
Smart Dual Light: infrared and white-light illumination up to 30 metres, with colour-assisted viewing when white light is active.
-
Two-way audio: built-in microphone and speaker for listening and speaking through a compatible ANNKE system.
-
PoE installation: power and network data can travel through one suitable Ethernet cable.
-
Outdoor protection: IP67-rated enclosure for properly installed indoor or outdoor use.
Is the I91DS genuinely 4K?
Yes. The camera's native maximum image resolution is 3840 × 2160 pixels, which is 8 megapixels and meets the common UHD 4K video format. For the full recorded resolution, the NVR, network bandwidth, display and recording settings must also support the selected 8MP stream. 4K resolution improves available detail, but identification still depends on distance, lens angle, lighting, positioning and movement.
AI detection and active alarm
Motion Detection 2.0 can classify human and vehicle targets so alerts are more useful than basic pixel-motion notifications. The I91DS can also use its white light and built-in speaker as an active warning. Alarm actions, schedules and sensitivity should be configured for the site to avoid unnecessary disturbance.
When connecting the camera to a third-party NVR, confirm support for human and vehicle events, two-way audio and active-deterrence controls. Basic ONVIF video compatibility does not guarantee that every advanced feature will be available through every recorder.
Smart Dual Light night monitoring
The camera combines infrared and white illumination with a stated range of up to 30 metres. Infrared supports discreet monochrome monitoring; white light can provide colour-assisted detail and a visible deterrent. Actual night performance depends on scene lighting, reflective surfaces, weather, mounting height and subject distance.
Where does the 4 mm lens work best?
The fixed 4 mm lens provides an approximately 78° horizontal field of view. It is a practical choice for driveways, gates, entrances, corridors, shop aisles and other defined areas where a more focused view is preferred to an ultra-wide overview.
Technical specifications
| Model |
ANNKE I91DS |
| Maximum resolution |
8MP, 3840 × 2160 |
| Lens |
4 mm fixed lens; approximately 78° horizontal field of view |
| Detection |
AI human and vehicle classification |
| Active deterrence |
Configurable flashing white light and audio alarm |
| Night illumination |
Smart Dual Light: infrared and white light, stated range up to 30 m |
| Audio |
Built-in microphone and speaker; two-way audio with a compatible system |
| Storage |
microSD/SDHC/SDXC support up to 512 GB; compatible NVR or network storage options |
| Compression |
H.265+, H.265, H.264+, H.264 |
| Image processing |
120 dB WDR, BLC, HLC and 3D DNR |
| Network compatibility |
ONVIF Profiles S, T and G; RTSP |
| Power |
IEEE 802.3af PoE or 12 V DC |
| Weather protection |
IP67 |
| Operating temperature |
−30°C to 60°C |
Other NVR options for the ANNKE I91DS
The following ANNKE recorders support an IP-camera resolution suitable for the native 8MP I91DS stream. The N98PBK is the pairing tested directly by Hawk Vision Pro. The alternatives below are linked by their published recording capacity; confirm firmware and advanced-feature controls for the final system.
Compatibility note: video recording compatibility does not automatically guarantee that every recorder exposes all camera-side AI, two-way audio, siren or flashing-light controls. Contact Hawk Vision Pro with the planned camera quantity and required features if you want the complete system checked before ordering.
What to check before ordering
- The recorder supports an 8MP IP camera and has sufficient incoming bandwidth.
- The required AI, two-way audio and active-alarm functions are supported by the recorder and software.
- Solid-copper Cat5e or Cat6 cable and suitable PoE power are available.
- A weather-protected junction box is used where connectors are exposed.
- Recording capacity is calculated for the required bitrate, schedule and retention period.
UK supply and support
Genuine ANNKE Products from an Authorised UK Partner. Hawk Vision Pro provides UK-focused pre-sales compatibility guidance and after-sales support. Delivery options, current availability and warranty terms are shown on the product page or confirmed before purchase.
Can the I91DS detect fire or measure temperature?
No. The I91DS provides native 4K video, human and vehicle classification, active strobe lighting and an audible warning, but it is not a thermal or dedicated fire-detection camera. Fire, smoke, flame and temperature alarms require a specialist camera designed with those sensing and analytics functions.
For sites that need both detailed 4K security coverage and early hazard monitoring, the I91DS can cover entrances, driveways and identification zones while a separate specialist device—such as ANNKE’s I81HT fire and temperature detection camera—covers the risk area. Recorder compatibility, event transmission and alarm actions must be checked for the exact camera, NVR and firmware before purchase.
Safety note: video analytics and temperature-monitoring cameras are supplementary monitoring tools and are not substitutes for compliant fire alarms, smoke detectors or a professionally designed life-safety system.
