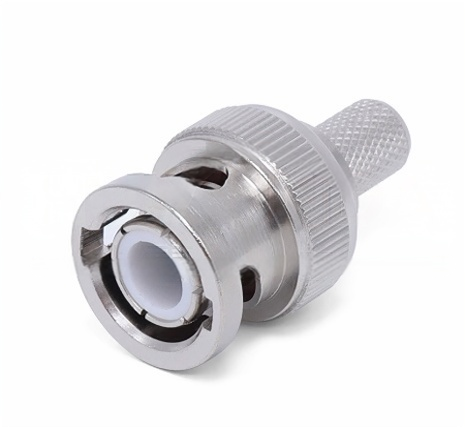

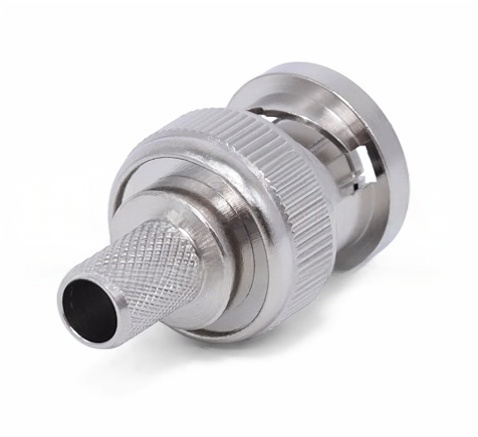

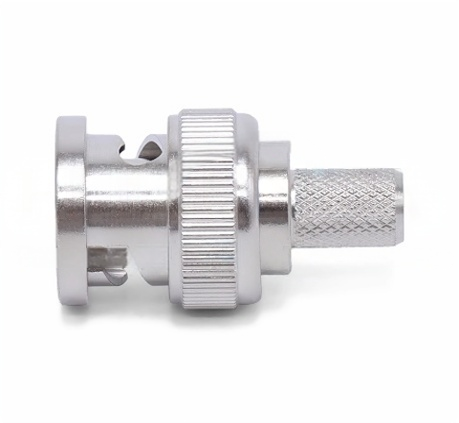

50 Ohm BNC Male Crimp Connector for LMR240 / 50minus 4 Coaxial Cable
A cable mount BNC male RF connector designed for crimp termination on compatible LMR240 / 50minus 4 50 ohm coaxial cable. It is intended for RF and radio frequency applications where the cable and equipment use a 50Ω BNC interface.
Key Features
-
BNC male (plug) connector
-
50 Ohm impedance for compatible RF systems
- Designed for crimp termination
- Compatible with LMR240 / 50minus 4 cable dimensions

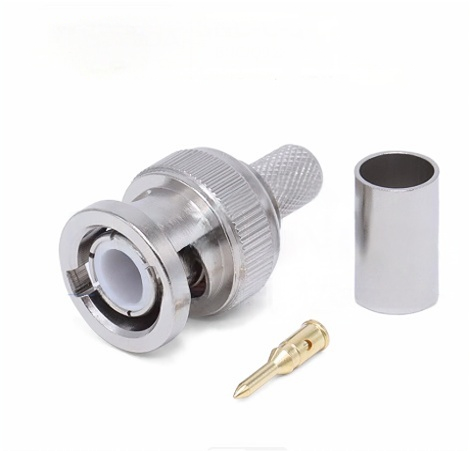

- Nickel plated connector body
- Gold plated centre contact
Important: 50Ω RF Connector, Not a Standard 75Ω CCTV Video BNC
Traditional analogue CCTV video systems commonly use 75 ohm coaxial cable and 75 ohm BNC connectors. This product is a 50 ohm connector for compatible LMR240 / 50minus 4 RF coaxial systems. Check the impedance and cable dimensions of your equipment before ordering.
Typical Applications
Suitable for compatible antenna, radio, RF distribution and other 50 ohm coaxial connections using LMR240 / 50minus 4 cable and a BNC male interface.
Technical Specification
- Connector: BNC male
- Impedance: 50Ω
- Termination: crimp
- Cable compatibility: LMR240 / 50minus 4
- Body finish: nickel plated
- Centre contact: gold plated
Installation Note
Use the correct crimp tool and die size for the connector and cable. A poor crimp can affect mechanical strength and RF performance. Confirm the cable dimensions before installation rather than assuming all similarly sized coaxial cables use the same connector.
