ANNKE FCD800P 8MP 180° Dual-Lens PoE Camera | Two-Way Audio

ANNKE FCD800P 8MP 180° Dual-Lens PoE Camera | Two-Way Audio

Explore the product design and its key installation details before choosing the right model for your security system.

In stock, available to order. Please allow up to 5 working days for dispatch.

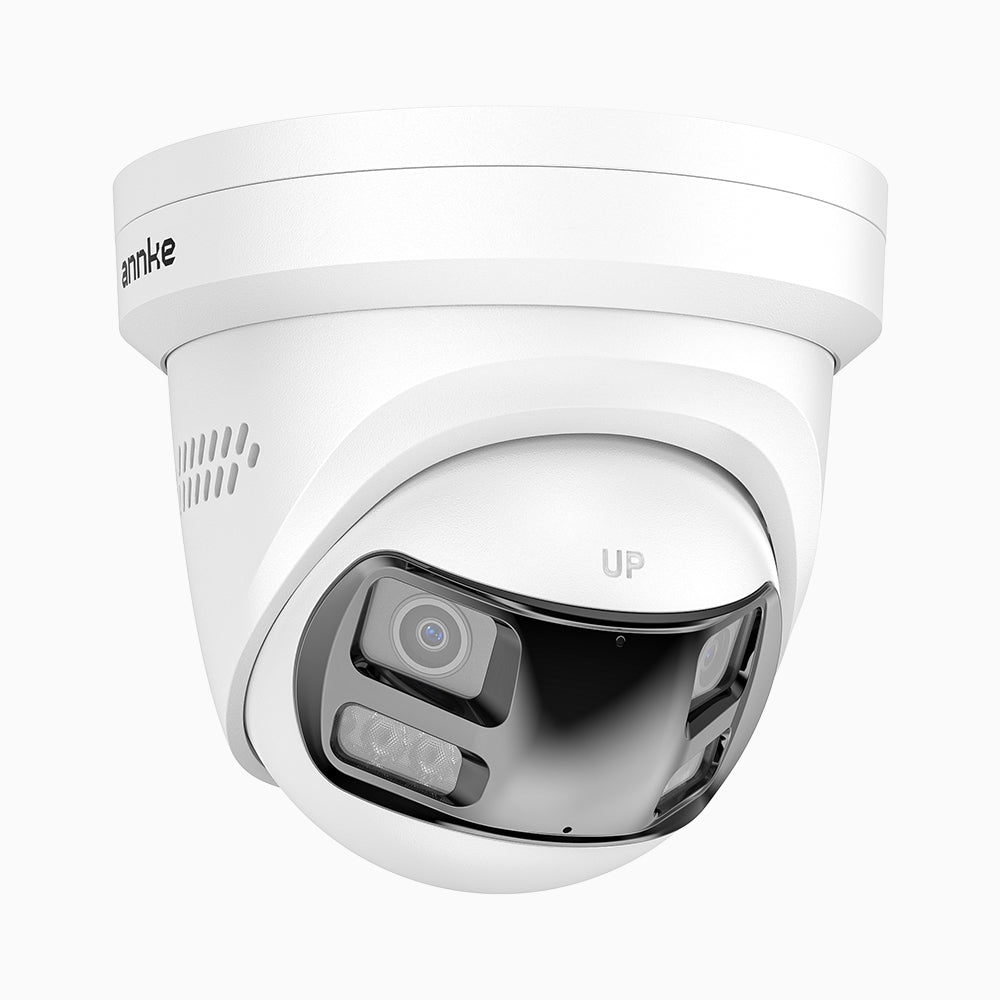

The ANNKE FCD800P is an 8MP dual lens PoE security camera designed to cover wide areas with a single panoramic view. Its two sensors and dual 2 mm lenses create a 180° horizontal field of view, while Smart Motion 2.0, two way audio and active light and sound deterrence add practical security features for homes and commercial sites.

Why Choose the ANNKE FCD800P?

The FCD800P is designed to give a complete 180 degree view with stronger vertical coverage and a durable all metal housing.

What can you see with this camera?

Its 180 degree horizontal and 77 degree vertical field of view creates a wide 20:9 panoramic image. It is useful where one mounting point needs to cover a broad frontage, yard or parking area.

Can it reduce the number of cameras required?

In a suitable position, it may replace two conventional fixed cameras and remove the gap between their views. The required identification distance should still be considered before deciding the final camera count.

Why does it cost more than a normal PoE camera?

You are paying for two light sensitive sensors, two bright f/1.6 lenses, stitched 4K panoramic video, all metal construction, two way audio and smart security functions. The benefit is wider usable coverage rather than resolution alone.

Who should buy this model?

It suits homes and businesses with wide areas and limited mounting positions. A standard turret camera remains the more economical option for narrow entrances and short corridors.

What do you receive for the price?

• A true 180 degree panoramic view
• Useful vertical coverage of the scene
• Dual sensor 4K imaging
• All metal outdoor construction
• Two way audio and PoE installation

Key Features

• 8MP panoramic video with resolution up to 4096 × 1860
• Dual 1/2.4 inch Progressive Scan CMOS sensors
• Dual 2 mm lenses with 180° horizontal and 77° vertical field of view
• Smart Dual Light with IR, white light and smart illumination modes
• Supplement light range up to 30 m
• Smart Motion 2.0 human and vehicle detection
• Line crossing and intrusion detection
• Built in microphone and speaker for two way audio
• White light flashing alarm and configurable audio alarm
• 120 dB WDR, BLC, HLC and 3D DNR
• H.265+ / H.265 / H.264+ / H.264 compression
• MicroSD storage up to 512 GB
• ONVIF support for compatible network video systems
• PoE 802.3af or 12 V DC power
• IP67 all metal housing for indoor or outdoor use

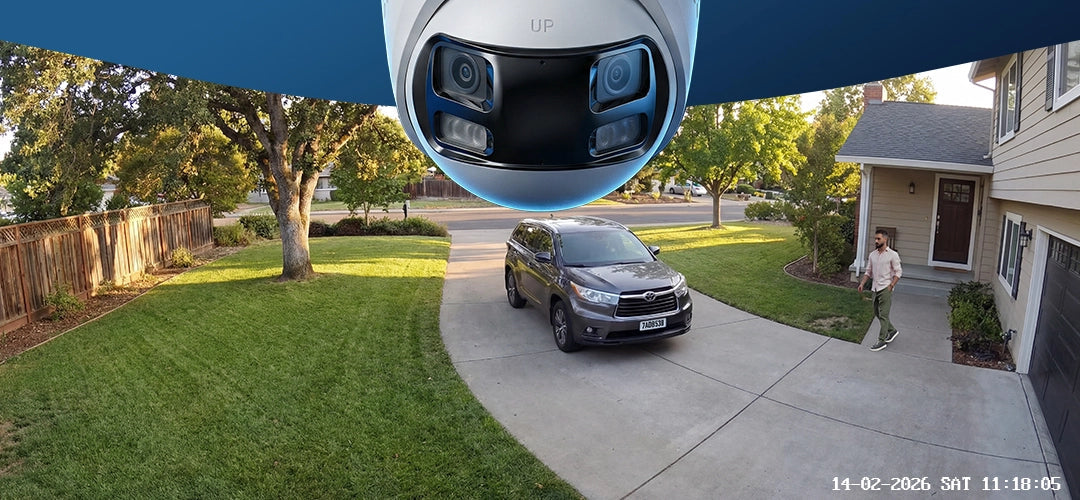

180° Panoramic Coverage

The FCD800P combines two lenses into a wide stitched image, helping monitor large entrances, driveways, yards, forecourts and other broad scenes without relying on several conventional fixed cameras.

Smart Dual Light Night Vision

Selectable infrared, white light and smart illumination modes provide flexibility after dark. In smart mode, the camera can use event driven lighting to improve colour detail when relevant movement is detected, with illumination supported up to 30 metres.

Human and Vehicle Detection

Smart Motion 2.0 can classify people and vehicles to reduce less relevant motion alerts. Line crossing and intrusion rules can also be configured for targeted perimeter monitoring.

Two Way Audio and Active Deterrence

A built in microphone and speaker enable two way communication. The camera also supports a flashing white light alarm and configurable audio warning, allowing supported events to trigger a more visible and audible response.

PoE, Storage and Compatibility

Power and network data can be carried over one Ethernet cable using a compatible IEEE 802.3af PoE source. The camera supports local microSD storage up to 512 GB and can integrate with compatible ANNKE or ONVIF network video systems.

What to Check Before Ordering

• Confirm your recorder supports the camera's panoramic 8MP stream.
• For a third party NVR, confirm ONVIF and resolution compatibility before purchase.
• Use a compatible IEEE 802.3af PoE source for single cable installation.
• A microSD card is optional and is not included unless stated separately.
• This item is available to order; please allow up to 5 working days for dispatch.
