ANNKE CR1CW 3K 4-Camera Bundle | 4 × 30m BNC Cables
Buy the complete camera bundle for £160 with free UK delivery
Bring four camera views together with the ANNKE CR1CW 3K 5MP analogue CCTV camera bundle. You receive four cameras, four 30 m BNC video and power cables, and a 12V power adapter with a four-way splitter, supplied together for £160 with free UK delivery.
| Included component | Price when purchased separately |
|---|---|
| 4 × ANNKE CR1CW 3K 5MP Smart Dual Light cameras at £36 each | £144 |
| 4 × 30 m ANNKE BNC video and power cables | £30 |
| 12V power adapter with four-way splitter | £12 |
| Total individual component value | £186 |
| Complete bundle price | £160 |
Save £26 compared with buying the listed components separately, with free UK delivery included. A practical choice for adding cameras to a compatible existing analogue DVR or building a new wired installation with a separately purchased recorder.
DVR and hard drive are not included.

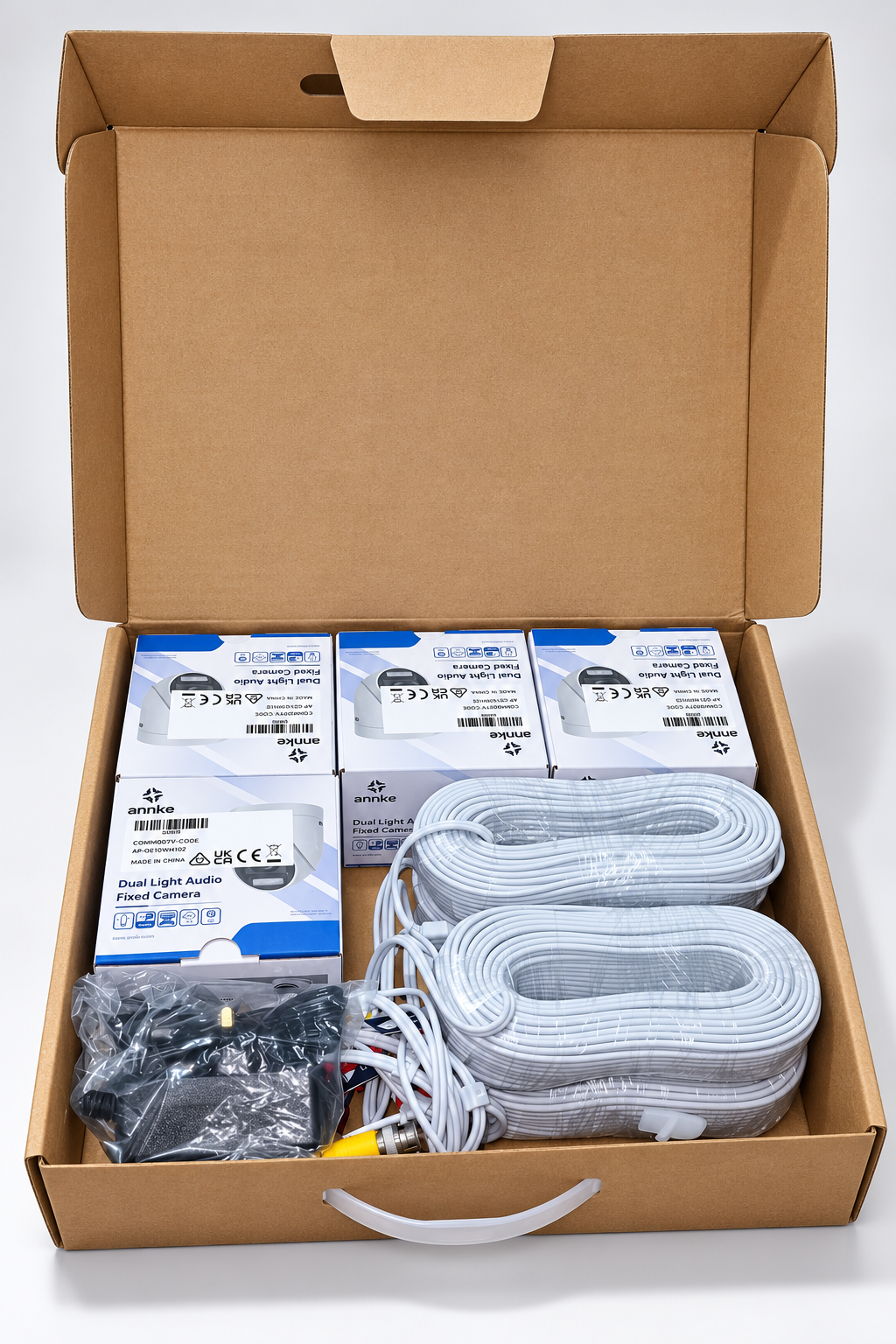

Four ANNKE CR1CW cameras, four 30 m BNC video and power cables, a 12V power adapter and a four-way power splitter in one analogue CCTV camera bundle. This package is intended for adding four camera views to a compatible DVR installation. A DVR recorder and hard drive are not included.
What is included?
| Component | Quantity | Details |
|---|---|---|
| ANNKE CR1CW analogue CCTV camera | 4 | White turret camera with built-in microphone and Smart Dual Light |
| ANNKE BNC video and power cable | 4 | 30 m / 100 ft per cable; 120 m nominal total across four separate runs |

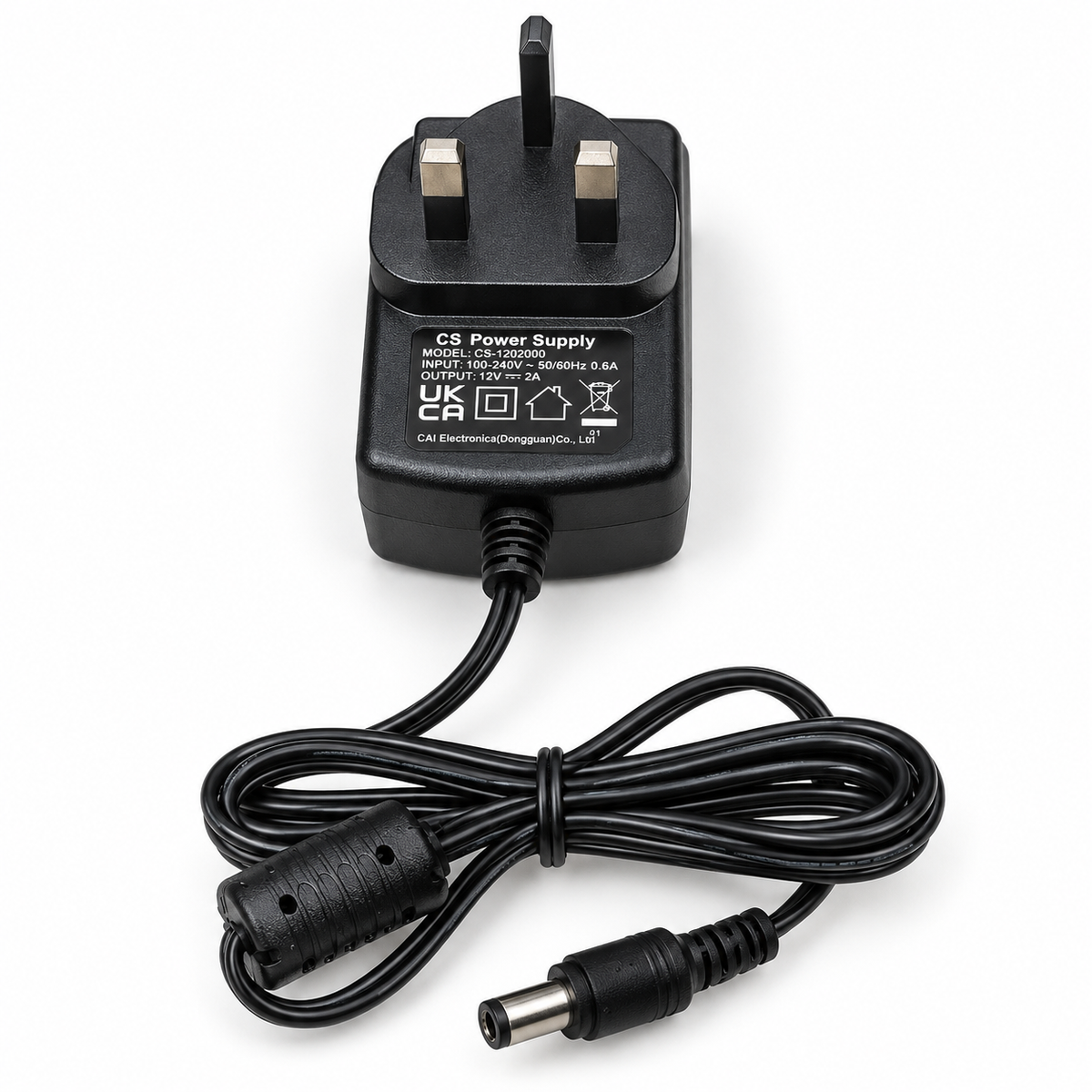

| 12V DC power supply adapter | 1 | Shared camera power supply |

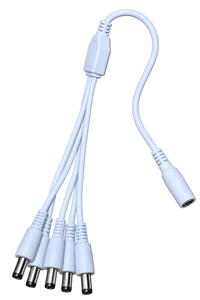

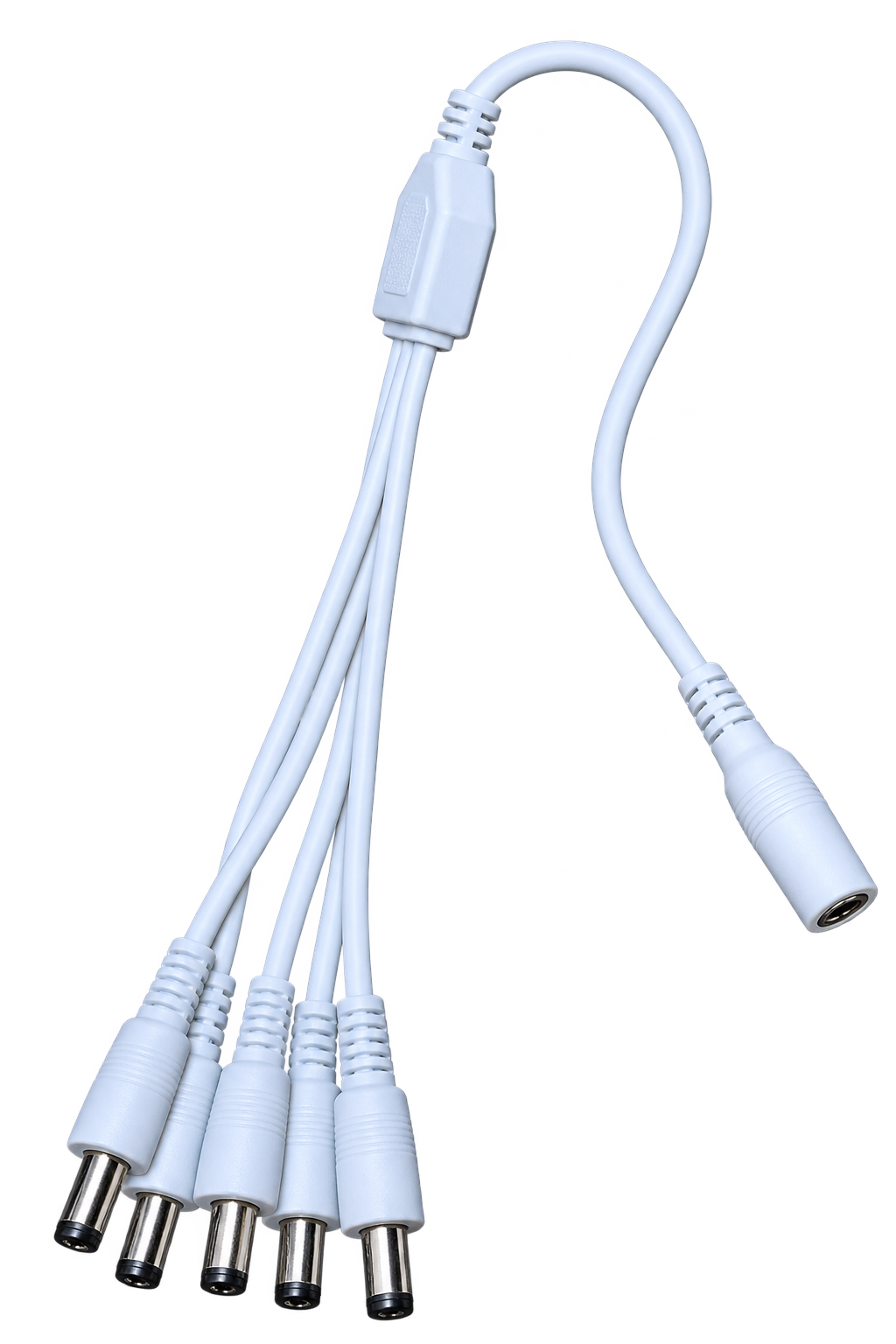

| Four-way DC power splitter cable | 1 | Distributes the adapter output to four camera power connections |
Not included: DVR, surveillance hard drive, monitor, installation service or additional mounting accessories unless separately listed.
Why choose this four-camera bundle?
Bring the camera, video cable and power connections together in one purchase. The four separate cable runs allow you to position cameras around entrances, a driveway, a shop floor or other areas suited to the installation. Measure the actual route, including bends and service loops, before ordering: each supplied cable is a separate 30 m lead.
HawkVision Pro is an ANNKE Authorised Sales Partner supplying CCTV equipment for UK homes, shops and businesses. This is a bundle assembled for sale by HawkVision Pro.
ANNKE ADL500 / CR1CW imaging and night viewing

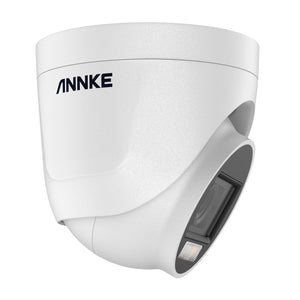

The white CR1CW turret camera belongs to ANNKE's ADL500 range (AP-CR1CW0102). A 2.8 mm f/1.2 lens delivers a 107° horizontal view, with 3K TVI output at 2960 × 1665 and up to 20 fps. DWDR, AGC, BLC and HLC help manage changing illumination.
Smart Dual Light and built-in audio
Select infrared, continuous white-light colour viewing or Smart Dual Light. With a compatible AI DVR, smart mode switches from infrared to white illumination when a person or vehicle is detected. The ANNKE UK description specifies infrared illumination up to 25 m and white light up to 20 m. The built-in microphone carries audio over coax to a compatible DVR; it does not provide two-way talk.
TVI, AHD, CVI and CVBS outputs allow integration with suitable analogue recorders. Audio and lighting controls depend on recorder firmware and settings. The adjustable mount helps aim the view, while IP67 protection suits indoor and outdoor camera placement.
Technical specifications
| Camera model | ANNKE CR1CW |
|---|---|
| Camera quantity | 4 white turret cameras |
| Video output | BNC; switchable TVI, AHD, CVI or CVBS |
| Supported recording formats | TVI: 3K at 20 fps; AHD: 5MP at 20 fps; CVI: up to 4MP at 25/30 fps; CVBS: PAL/NTSC. Recorder support determines the available mode. |
| Night illumination | Infrared up to 25 m as stated in the ANNKE UK description; white light up to 20 m, subject to scene conditions |
| Camera weather protection | IP67 housing; protect cable joints and power connections separately |
| Camera power | 12V DC; maximum 2.9 W per camera |
| Operating temperature | −40°C to +60°C |
| Dimensions per camera | 80 mm × Ø85.1 mm; approximately 300 g |
| Cable length | 4 × 30 m / 100 ft |
Includes 4 × 30 m ANNKE BNC video and power cables

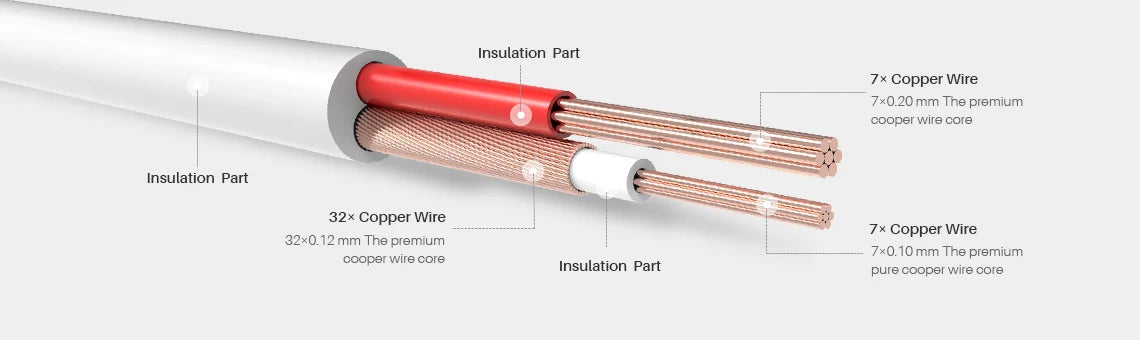

Four individual 30 m / 100 ft ANNKE cables are included, one for each camera. The two-in-one assembly combines analogue video and DC power connections. Total nominal cable length is 120 m across four separate runs.
- Compatible with suitable AHD, CVI and TVI analogue CCTV systems, including 5MP cameras.
- UL-certified range with manufacturer-listed electrical safety and flammability testing, alongside RoHS and ISET testing.
- Flexible PVC-45P jacket designed for routing and resistance to abrasion and weather exposure.
ANNKE describes the cables for indoor and outdoor use. Protect exposed connections and keep the mains adapter dry. Flame resistance does not mean fireproof or certify the complete bundle.
DVR compatibility and installation
Use a DVR with at least four available BNC channels and support for the selected camera signal and resolution. These cameras do not connect directly to a PoE NVR or network switch. Audio over coax, event detection, lighting control and remote viewing depend on the exact DVR, firmware and configuration.

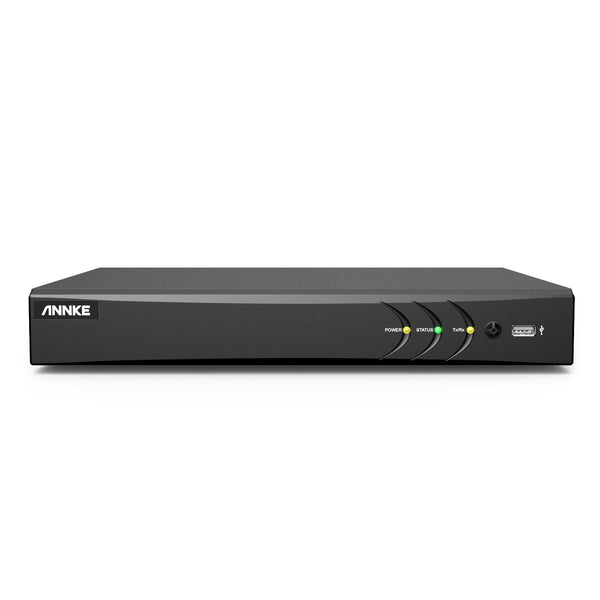

Complete your system with a DVR and surveillance hard drive
DVR and storage are purchased separately. Compare these available recorder options:
-
ANNKE DW81KN 3K Lite 8-Channel Hybrid CCTV DVR Recorder
-
ANNKE DR88 4K 8-Channel Hybrid CCTV DVR
-
ANNKE D941BB 4K 4-Channel Hybrid DVR
: a four-channel recorder option for a four-camera installation.
Confirm the selected recorder's input resolution, audio and Smart Dual Light support before ordering.
Add Seagate SkyHawk recording storage
- Seagate SkyHawk 4TB surveillance hard drive (ST4000VX016)
- Seagate SkyHawk 6TB surveillance hard drive (ST6000VX008)
Match the hard drive to the DVR's supported capacity. Recording duration depends on compression, resolution, frame rate and recording schedule. Browse our surveillance hard drives for other storage options.
Connect each camera's BNC video lead to its own DVR channel and its DC power lead to the splitter. Keep the mains adapter in a dry, protected location. Verify the adapter label, output current, connector size and polarity against all four cameras and the cable run before installation. The splitter shares available power; it does not increase the adapter's capacity.
Frequently asked questions
Does this package include a DVR or hard drive?
No. It includes four cameras, four 30 m video and power cables, one 12V adapter and one four-way splitter. Add a compatible DVR and surveillance hard drive separately if required.
Can I use it to replace existing analogue cameras?
Yes, where the recorder supports the selected video format and resolution. Check audio and Smart Dual Light support separately rather than assuming every BNC recorder provides all functions.
Is this a PoE or Wi-Fi camera kit?
No. It uses wired BNC video connections and separate 12V DC power connections. Network access, where supported, is provided by the separately purchased DVR.
Does the cable certification apply to the power adapter?
No. The ANNKE cable certification applies to the specified cable range. The adapter is a separate component and is not presented as an original ANNKE power supply.
Support, delivery and warranty
Ask HawkVision Pro to check your recorder model before ordering through our technical support page. Free UK delivery is included with this £160 bundle. ANNKE cameras are supplied with our two-year warranty; contact us for the applicable accessory warranty and current returns terms.
Technical references: ANNKE CR1CW specification, page 2; ANNKE UL-certified BNC cable specification.
