1080P@60Hz HDMI Extender over Cat5e/Cat6 – 30m No-Power TX/RX Kit
£25.00 GBP
Shipping calculated at checkout.
In stock: 10
Description

1080P@60Hz HDMI Extender over Cat5e/Cat6 – 30m TX/RX Kit

This compact HDMI extender kit transmits Full HD 1080P video at up to 60Hz over a single direct Cat5e or Cat6 cable for distances up to 30 metres (100 ft). It is ideal for CCTV installations where a DVR or NVR is positioned away from the monitor or television.

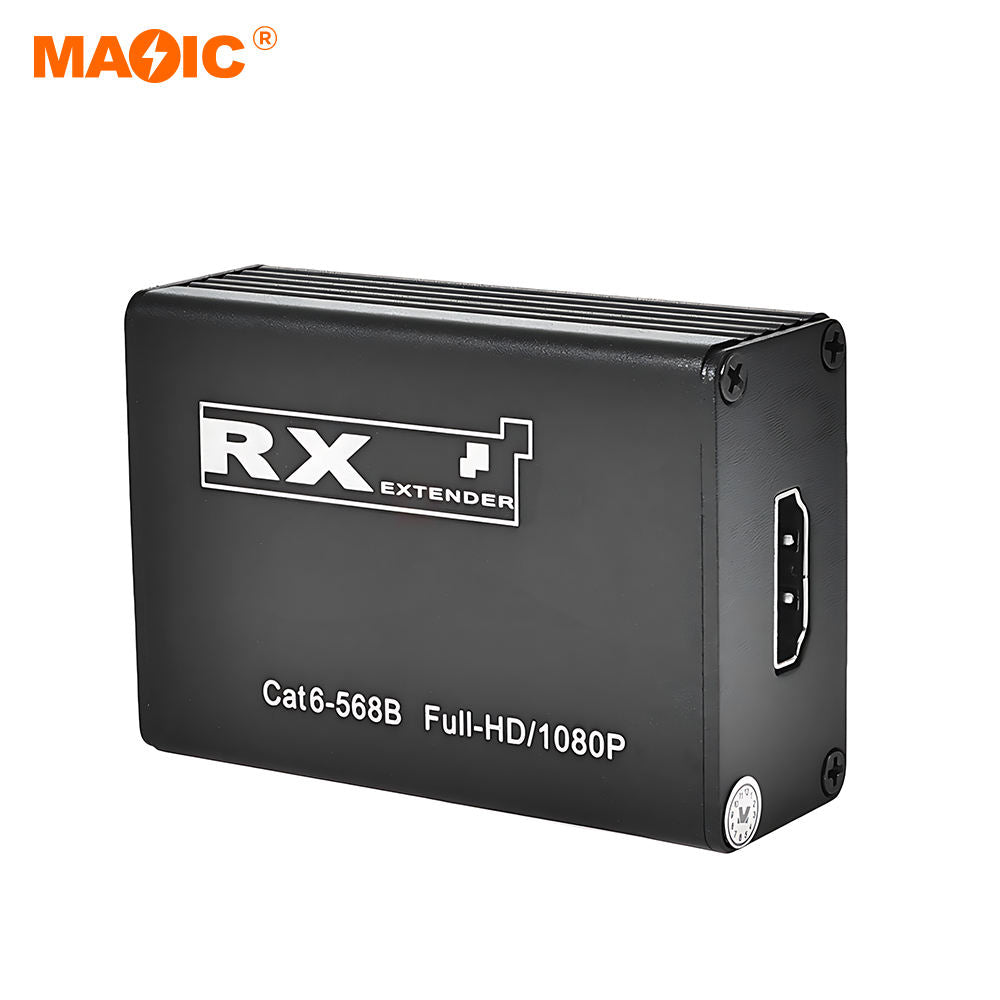

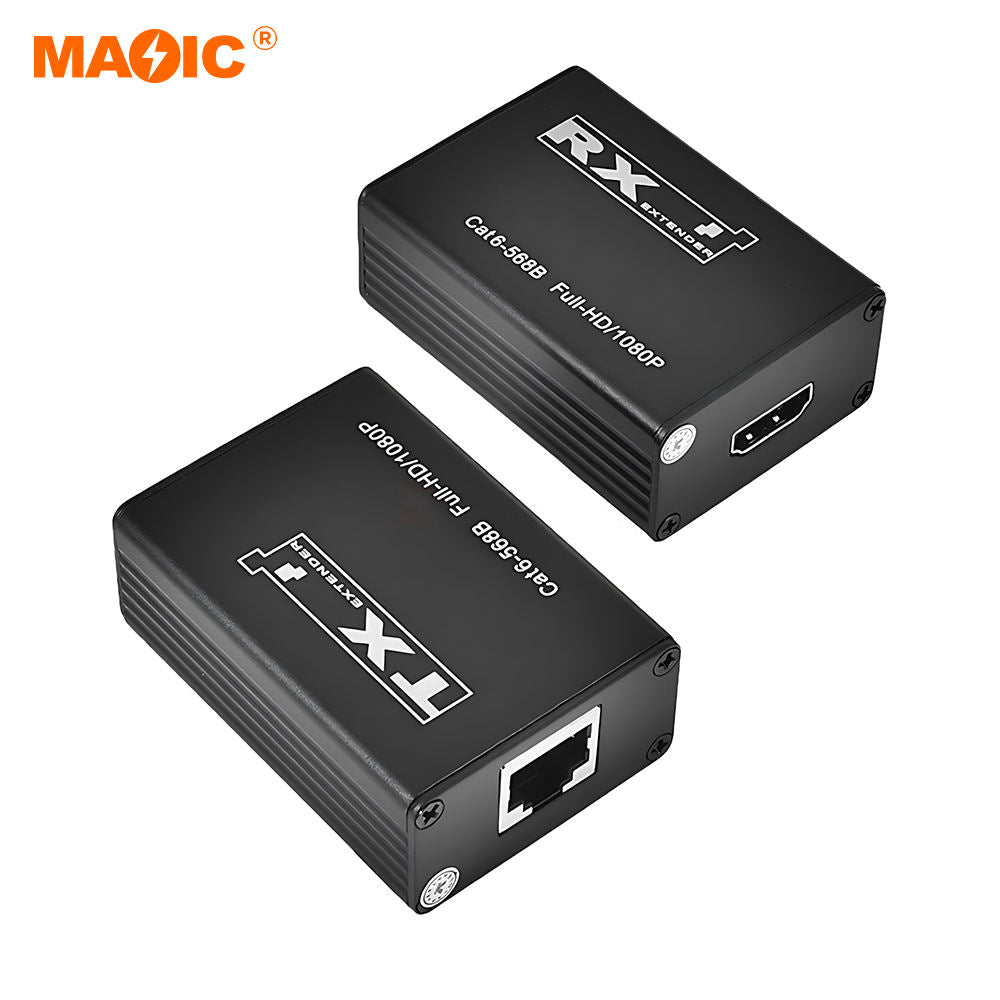

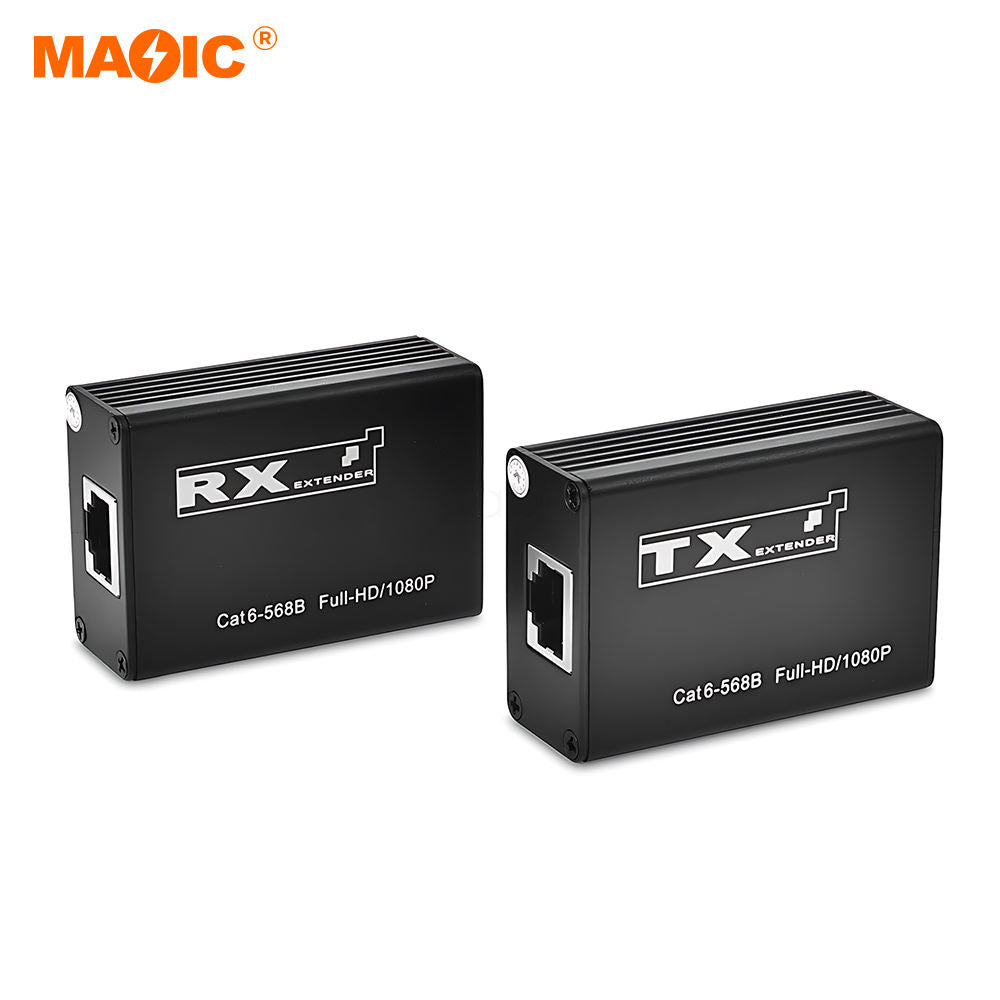

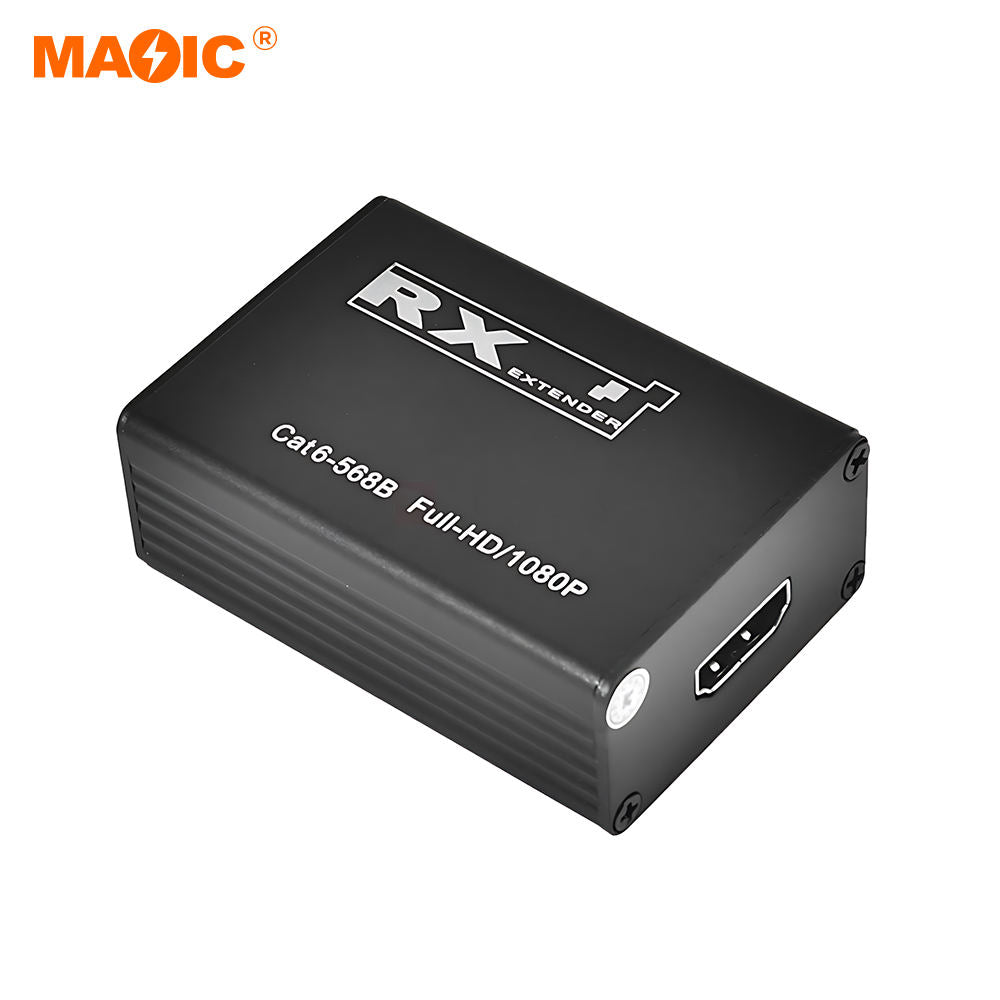

The kit includes a TX transmitter and RX receiver. The transmitter connects to the HDMI output of the DVR/NVR, while the receiver connects to the display. A single Cat5e/Cat6 cable links the two units.

Highlights at a Glance

  • Full HD 1080P@60Hz video transmission
  • Up to 30m / 100ft transmission distance
  • Works over a single Cat5e or Cat6 cable
  • Built-in signal amplification for stable long-distance transmission
  • Designed for low-latency video delivery while preserving picture quality
  • No separate external power adaptor required
  • TX + RX pair supplied as one kit
  • Designed for DVR and NVR CCTV systems
  • HDCP support
  • Compact metal housings for practical CCTV installations

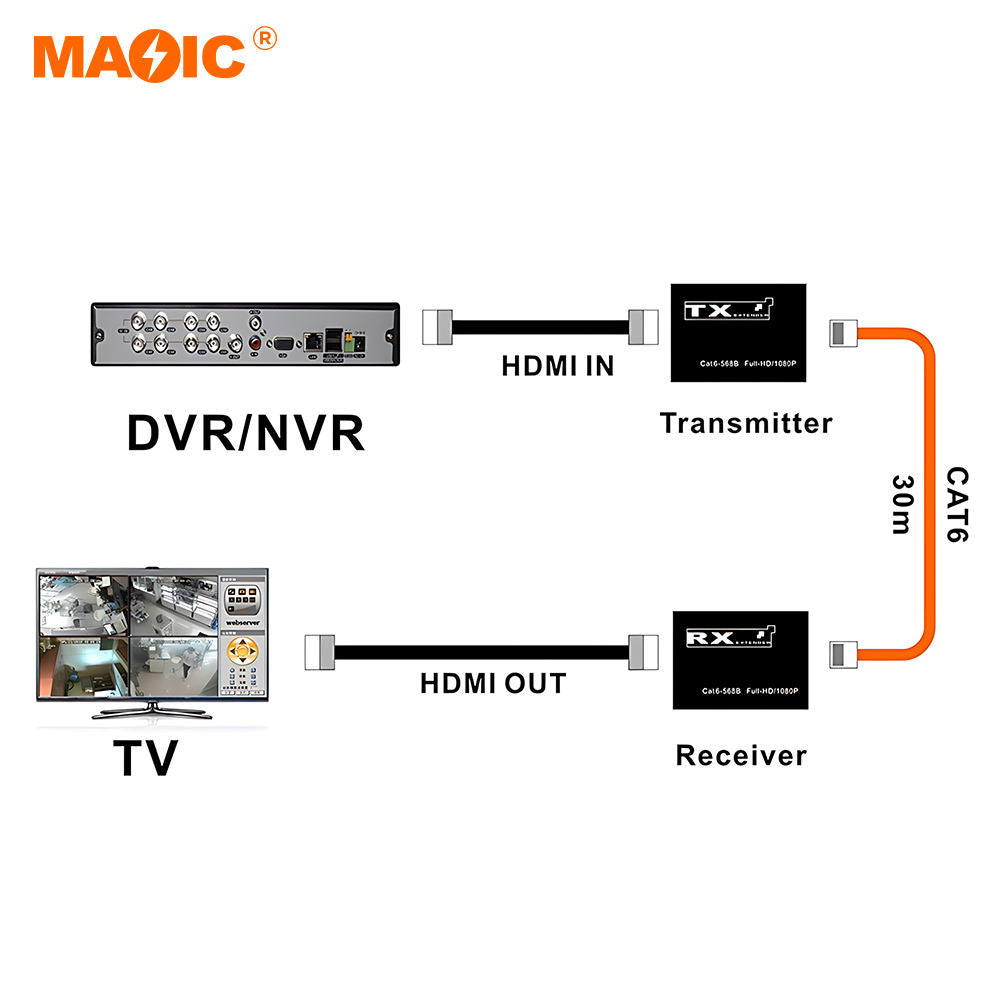

How It Connects

  1. Connect the DVR/NVR HDMI output to the TX transmitter with an HDMI lead.
  2. Run a direct Cat5e or Cat6 cable from the TX unit to the RX receiver.
  3. Connect the RX receiver to the TV or monitor with an HDMI lead.

Important: although this product uses RJ45 connectors and Cat5e/Cat6 cable, it is an HDMI signal extender rather than an IP network device. The TX and RX units should be connected directly by the network cable and should not be routed through an Ethernet switch, router or network.

Typical Uses

Suitable for CCTV control rooms, shops, offices, warehouses, homes and other installations where a DVR/NVR needs to display video on a TV or monitor located up to 30 metres away.

Specifications

  • Video resolution: Up to Full HD 1080P
  • Refresh rate: Up to 60Hz at 1080P
  • Transmission distance: Up to 30m / 100ft
  • Cable: Cat5e / Cat6
  • Connections: HDMI and RJ45
  • Units: 1 × TX transmitter + 1 × RX receiver
  • Application: DVR/NVR to TV or monitor
  • External power adaptor: Not required
  • HDCP: Supported
  • Signal processing: Built-in amplification

For best results, use a good-quality solid-copper Cat5e or Cat6 cable and keep the cable run direct between the transmitter and receiver.
